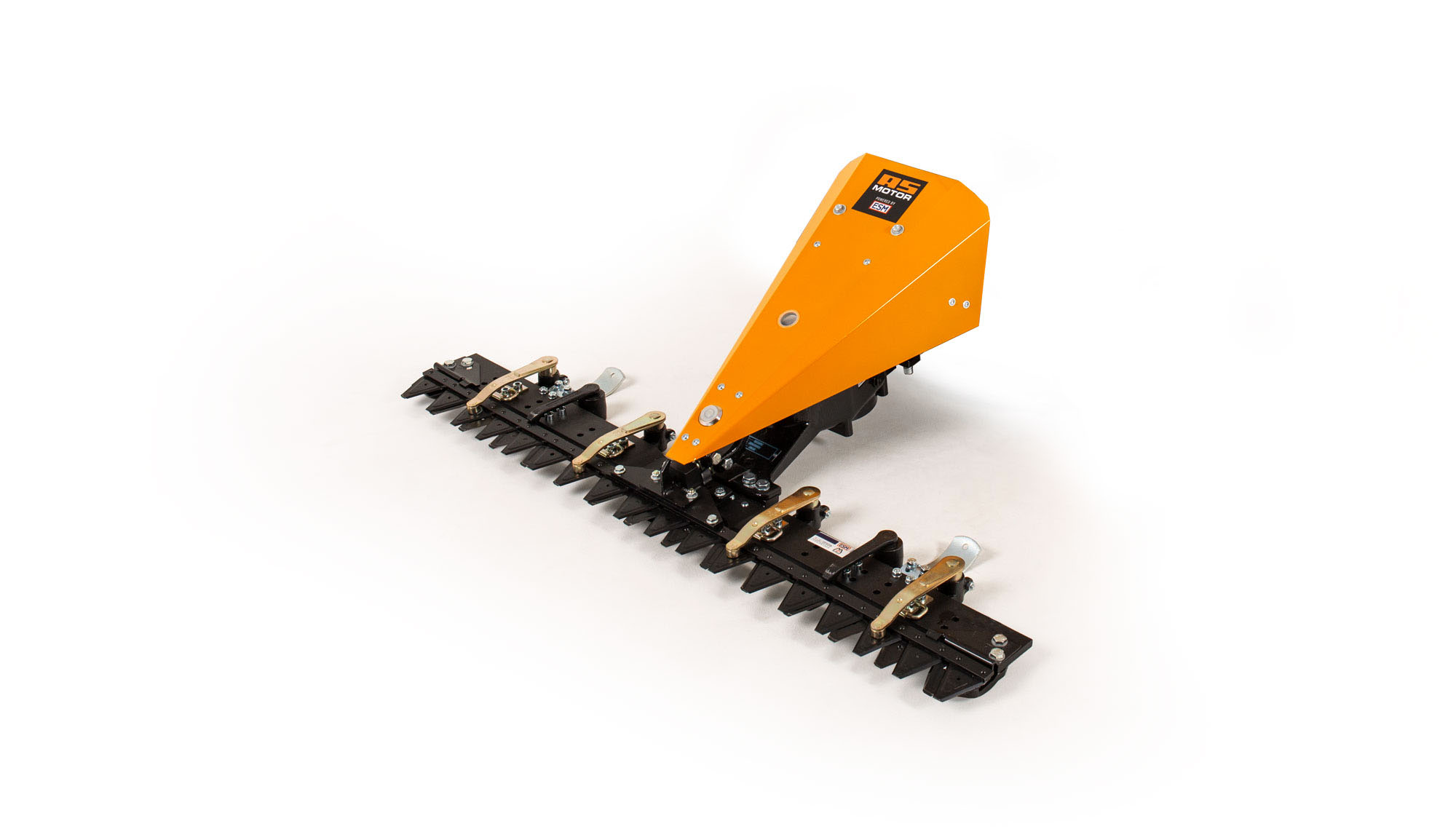

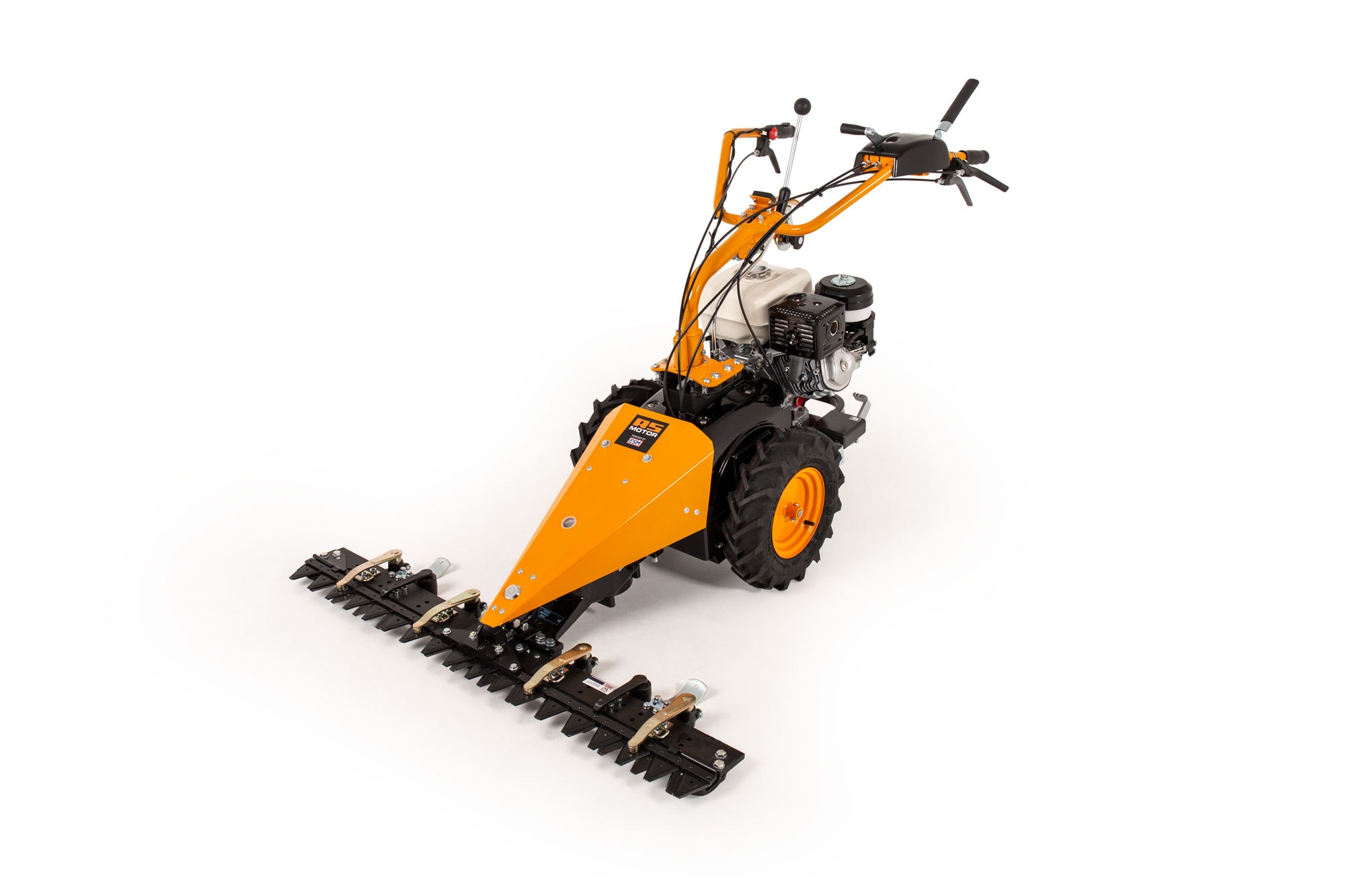

Barra de corte profesional para el corte suave de prados
Los métodos de corte oscilantes cortan la hierba en toda su longitud, prácticamente por cizallamiento. La hierba sin astillar puede entonces ser heneada, secada y recogida. Al mismo tiempo, es el método de corte más suave para insectos y pequeñas criaturas, ya que no requiere herramientas de corte giratorias. ESM ha sido uno de los proveedores más renombrados de barras de corte en el mercado durante décadas. El sistema ESM BIDUX de guía de brazo oscilante doble establece estándares en términos de comodidad y rendimiento de área.
Corte amigable con los insectos
Dos barras de cuchillas se mueven en direcciones opuestas entre sí. La hierba se corta de 3 a 10 cm por encima del suelo en toda su longitud, como si fuera con un par de tijeras. Los insectos y las pequeñas criaturas no están en peligro por las piezas giratorias.
Sin obstrucción durante el corte
Los sistemas de doble cuchilla son los menos propensos a obstruirse. El problema de la obstrucción generalmente ocurre al girar, al conducir sobre hierba ya cortada y cuando la hierba es empujada hacia abajo. Las barras de doble cuchilla son el estado del arte actual y superiores a las barras convencionales y de dedos con una sola barra de cuchillas.
Ventajas del producto
Detalles del producto

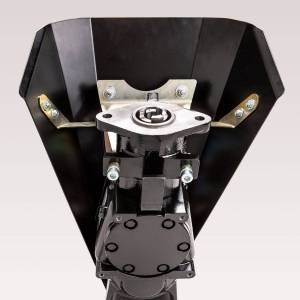

La más alta calidad de transmisión central en baño de aceite
Cigüeñal sólido en baño de aceite. Carcasa de hierro maciza.

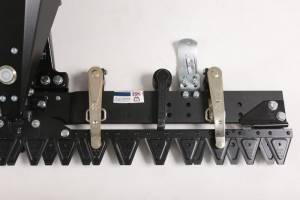

Guía de cuchilla de doble palanca oscilante
Las barras de corte superior e inferior se mueven una contra la otra mediante palancas basculantes. Esto garantiza una presión de contacto constante en toda la anchura de corte.

Espaciado de dientes 70/84, suave
No todas las cuchillas cortan al mismo tiempo, sino alternativamente. Aumenta la fuerza de corte y la suavidad del funcionamiento.

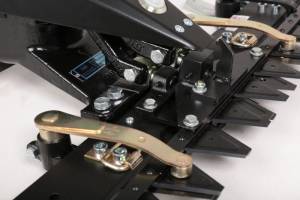

Sistema ESM BIDUX
Guía de brazo oscilante doble BIDUX de ESM en la parte superior e inferior de las barras de cuchillas.
